Low Cost 220V 12V Variable Power Supply
Low Cost 220V 12V Variable Power Supply
Low Cost 220V 12V Variable Power Supply
Low Cost 220V 12V Variable Power Supply
Low Cost 220V 12V Variable Power Supply

Low Cost 220V 12V Variable Power Supply

  • Price:USD 35.00-35.00
  • Delivery:FOB
  • Accept Min order:Yes

 Low Cost 220V 12V Variable Power Supply

Product Description

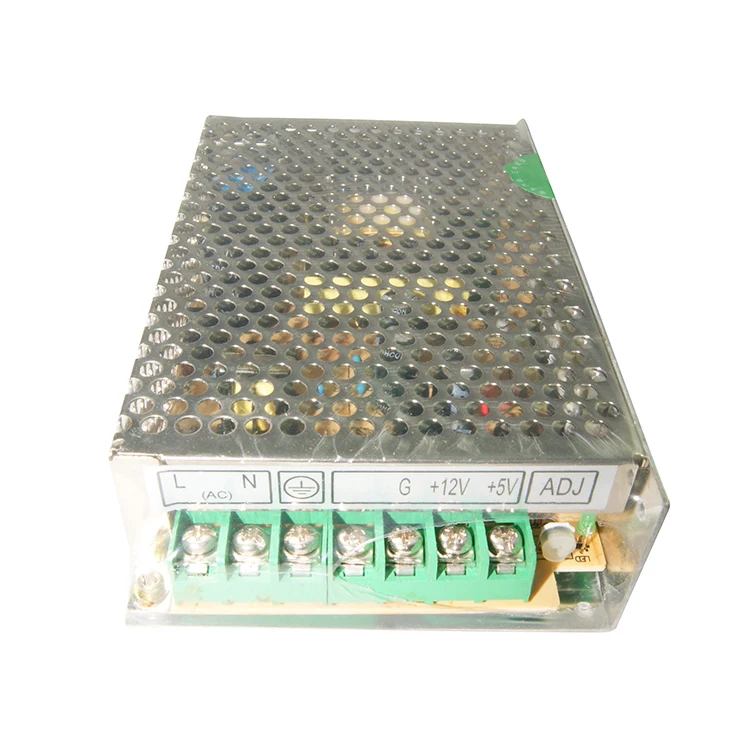

Name:MD-6012-5 power supply  Specs:12V6A 5V1.5A  Size:L159*W97*H38mm


Specification:

Input Voltage-----------------------110/220VAC

Input frequency---------------------47—63Hz

Inrush current-----------------------cold start, 15A at 115V, 30A at 230V

Overload protection----------------105%--150% rated output power, auto-recovery

Over voltage protection------------115%---135% rated output voltage,

Setup, rise, hold up time---800ms,50ms,10ms/115VAC; 300ms,50ms,50ms/230V AC

Withstand voltage-------------------I/P—O/P, I/P—FG: 1.5KV, 1 minute

Working temperature---------------0-50 @ 100%, -10 @ 80%, 60 @ 60% load

Safety standards---------------------UL1950, EN60950, CB, CE

Connection----------------------------7P/9.5mm pitch terminal block with cover

Net weight-----------------------------0.5kg



 Model

  Output

 Tol.

 R&N

 Effi.

 MD-998A6-5

  5V, 1.5A

 ±2%

 30mV

  74%



 12V, 6A

 ±6%

 100mV




We also accept OEM orders with samples or pictures. Warmly welcome to contact us and visit our factory any time.
Company Information

about us.jpg

Main Products

Main Products.jpg

Contact Us

.jpg

  • Brand Name:Coinop Spare
  • Model Number:MD-6012-5
  • Output Power:Other
  • Output Type:Multiple
